Manufacturers of Asphalt Sealcoating Equipment

Text goes here.








Our equipment is completely engineered and
COMPETITVELY PRICED, featuring:

Self-propelled Sealcoating Machines

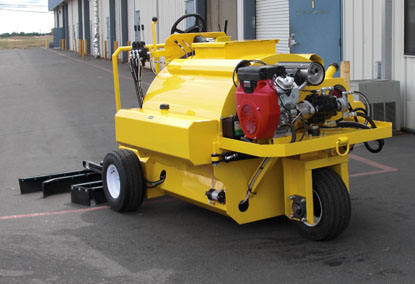

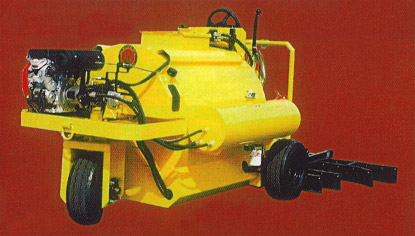

Model X1 300
$18,995

click to see enlarged image

Inquire about this product.

  • Dual Rear Wheel Drive with Brakes
  • Power Steering
  • 24 H.P. Honda Engine
  • 8 foot Hydraulic Angle Squeegee
  • Water Tank
  • 4 inch Material Valve
  • Reversible Agitation
  • Large Capacity Water Fog System

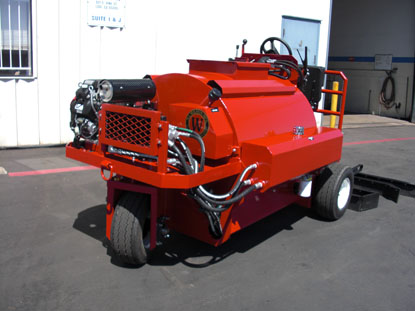

Model X2 300

click to see enlarged image

Inquire about this product.

  • Dual Rear Wheel Drive with Brakes
  • Power Steering
  • 24 H.P. Honda Engine
  • 8 foot Hydraulic Angle Squeegee
  • Large Capacity Stainless Steel Water Tank
  • 4 inch Material Valve
  • Reversible Agitation
  • 2 inch Side Dump Valve
  • Hydraulic Oil Cooler
  • Seat

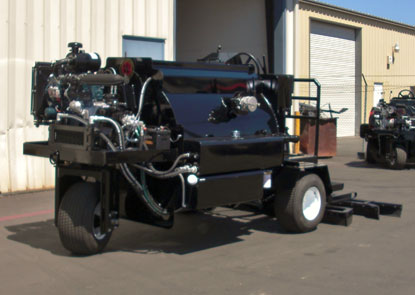

Model X3 500

click to see enlarged image

Inquire about this product.

  • Dual Rear Wheel Drive with Brakes
  • Power Steering
  • 41 H.P. Diesel Water-Cooled Engine
  • 8 foot Hydraulic Angle Squeegee
  • 4 inch Material Valve
  • 2 inch Agitator Shaft
  • Large Capacity Water Fog System
  • Stainless Steel Water Tanks

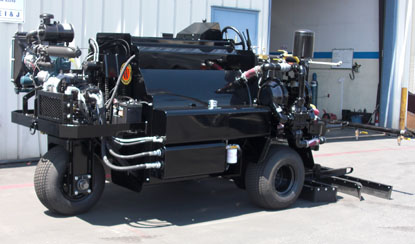

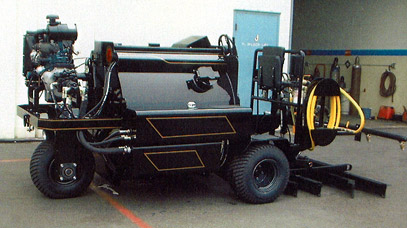

Model WC350-DA

click to see enlarged image

Inquire about this product.

  • Dual Rear Wheel Drive with Brakes
  • Power Steering
  • 42 H.P. Kubota Turbo Diesel Engine
  • 8 foot Hydraulic Angle Squeegee
  • Hydraulic Driven Dual Diaphragm Material Pump
  • Stainless Steel Water Tank
  • 2 inch Agitator Shaft
  • Spray Bar and Spray Wand

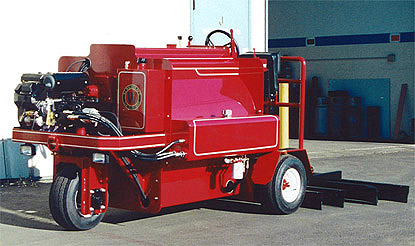

Model WC300G

click to see enlarged image

Inquire about this product.

  • Dual Rear Wheel Drive with Brakes
  • Power Steering
  • 24 H.P. Honda Engine
  • Optional 24 HP Honda or 25 HP Kohler Engine
  • 8 foot Hydraulic Angle Squeegee
  • 4 inch Material
  • 2 inch Agitator Shaft
  • Reversible Agitation
  • Large Capacity Water Fog System
  • Stainless Steel Water Tank

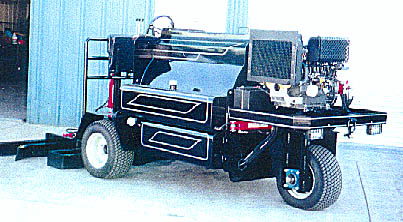

Model WC300GH

click to see enlarged image

Inquire about this product.

  • Dual Rear Wheel Drive with Brakes
  • Power Steering
  • 31 H.P. Diesel Water-Cooled Engine
  • 8 foot Hydraulic Angle Squeegee
  • 4 inch Material Valve
  • 2 inch Agitator Shaft
  • Large Capacity Water Fog System



Truck-mounted Tanks

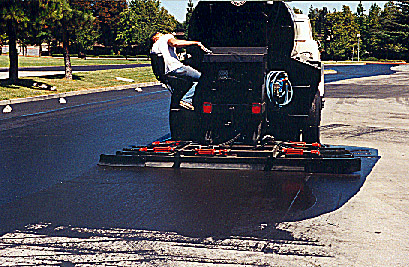

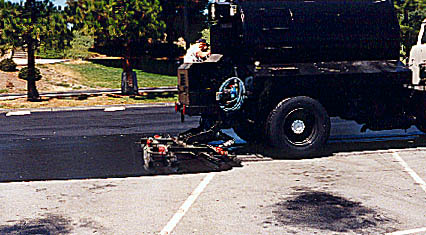

1500 Gallon Truck Mount Tank with Squeegee

click to see enlarged image
click to see enlarged image

Inquire about this product.

  • 2 15/16 Solid Steel Shaft
  • Multi-blade Agitator
  • Large Capacity Water Tanks
  • Hydraulic Sand Loading System
  • 2 inch Bowie Pump
  • Hydraulic Motor Driven Water Pump
  • 12 foot Hydraulic Angle Drag Squeegee
  • 6" Butterfly Valve w/ 2 dual 4" discharge drop pipes
  • 8 H.P. Honda Electric Start Engine

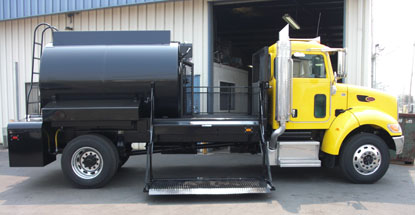

1500 Gallon Truck Mount Tank

click to see enlarged image

Inquire about this product.

  • Lift Gate
  • 2 Stainless Steel Water Tanks
  • 3 inch Bowie Pump
  • 24 H.P. Honda Engine
  • 2 15/16 Solid Steel Shaft
  • Full Sweep Agitation
  • 4" Material Valve

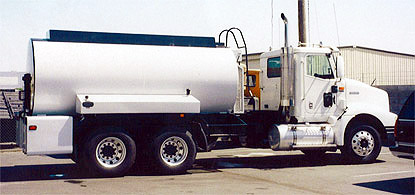

2400 Gallon Truck Mount Tank

click to see enlarged image

Inquire about this product.

  • 13 H.P. Honda Electric Start Engine
  • Multi-Blade Hydraulic Driven Agitator
  • 4 inch Discharge Valve
  • Bowie Pump + Water Pump
  • 2 Stainless Steel Water Tanks

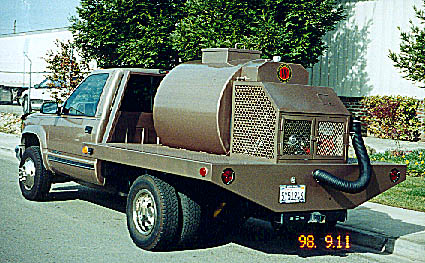

300 Gallon Truck Mount Tank

click to see enlarged image

Inquire about this product.

  • Multi-Blade Hydraulic Driven Agitator
  • 8 HP Honda Electric Start Engine
  • 4 inch Discharge Valve
  • Security Caged
  • 2 inch solid steel shaft
  • Steel bed

Hand A gitated Tanks and Hot Tackers

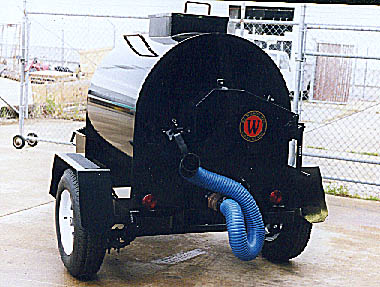

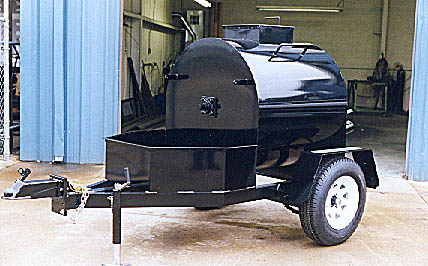

250 Gallon Hand Agitated Mixing Tank

click to see enlarged image
click to see enlarged image

Inquire about this product.

  • Trailer Mounted with Electric Brakes
  • Full Sweep Agitation with 5 to 1 Gear Reduction for ease of turning
  • 3 inch Butterfly Valve for Material Discharge
  • Front Mounted Water Tank for Squeegee

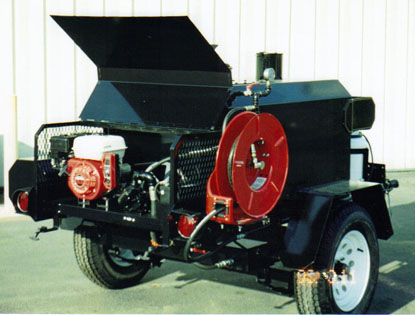

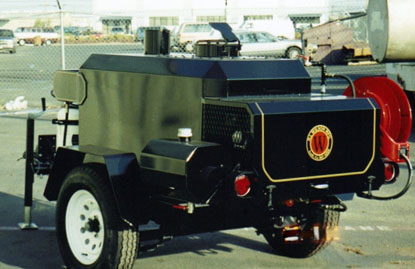

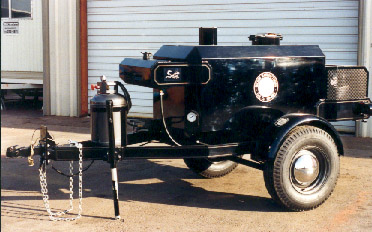

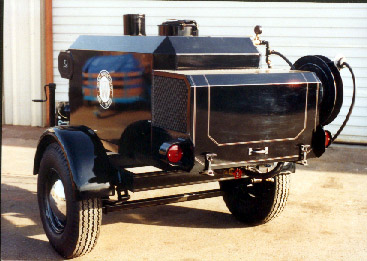

Hot Tackers

click to see enlarged image
click to see enlarged image

Inquire about this product.

  • 130 Gallon to 300 Gallon Capacity
  • 5 H.P. Honda Electric Start Engine
  • 1.5 inch Viking Pump
  • 4 inch Heating Tube
  • Diesel Clean out Tank
  • Adjustable Tow Height
  • 7.5 Gallon LPG Tank

Skid-mounted Tanks

1500 Gallon Skid Mount Tank

click to see enlarged image

Inquire about this product.

  • Multi-Blade Hydraulic Driven Agitator
  • 8 H.P. Honda Electric Start Engine
  • 4 inch Discharge Valve
  • 2 15/16 inch Solid Steel Shaft
  • Security Caged

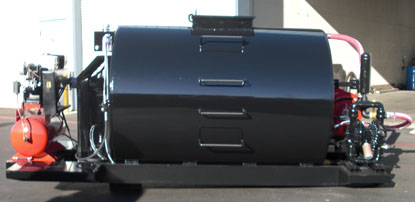

1000 Gallon Skid Mount Tank

click to see enlarged image

Inquire about this product.

  • Spray System
  • Full Sweep Agitation
  • 2 15/16 inch Solid Steel Shaft
  • Hose Reel with 100ft of Hose
  • Double Diaphragm Wilden Pump
  • 13 H.P. 30 Gal Ingersoll Rand Air Compressor
  • Stainless Steel Water Tank



6000 Gallon Bulk Storage Tank

click to see enlarged image

Inquire about this product.

  • 2 15/16 inch Solid Steel Shaft with Center Mount Support Bearing
  • Multi-Blade Agitator
  • Security Caged
  • 4 inch Discharge Valve
  • Large Capacity Hydraulic System
  • Access Door
  • 3 inch Bowie Pump
  • 25 H.P. Kohler Gas Engine or 15 HP Electric Motor

Tandem Trailers

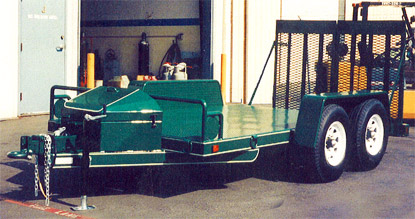

14 Foot Tandem Trailer

click to see enlarged image

Inquire about this product.

  • GVW: 12,000 Lbs.
  • Main Frame: 5" Channel
  • Deck: 1/8" Diamond Plate
  • Width: 102" Wide-82" Between Fenders
  • Fenders: Extra Heavy Duty Fenders with Lining
  • Axles: Tandem 6,000 lb. 4" Drop Axles
  • Wheels: 16" with Eight Hole Bolt Pattern
  • Tie Downs: 3 Heavy Duty Hinged "D" Rings per Side
  • Hitch: Lunette Eye (Pintle) or 2-5/16" Ball Coupler Option
  • Brakes: 2"x12" Electric All Wheels
  • Hydraulic Surge Brakes Optional
  • Tires: 7:50-16" 10 Ply
  • Lights: Tail & Clearance
  • Jack: 7,000 lb. Capacity

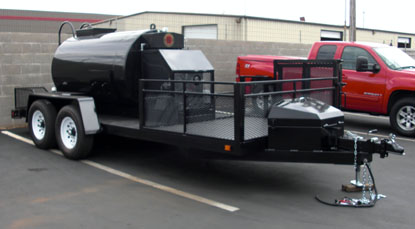

20 Foot Tandem Trailer with Mounted 700 Gallon Tank

click to see enlarged image

Inquire about this product.

  • GVW: 12,000 Lbs.
  • 700 Gallon Mixing Tank
  • Full Sweep Agitation
  • 5 Feet Front End Storage
  • Diamond Plated Deck
  • Stainless Steel Water Tank
  • 3" Bowie Pump
  • Squeegee Box
  • Heavy Duty Fenders with Lining
  • Electric All Wheel Brakes
  • Hydraulic Surge Brakes Optional
  • Tail and Clearance Lights
  • Jack: 7,000 lb. Capacity
